SNP31/900X33.500

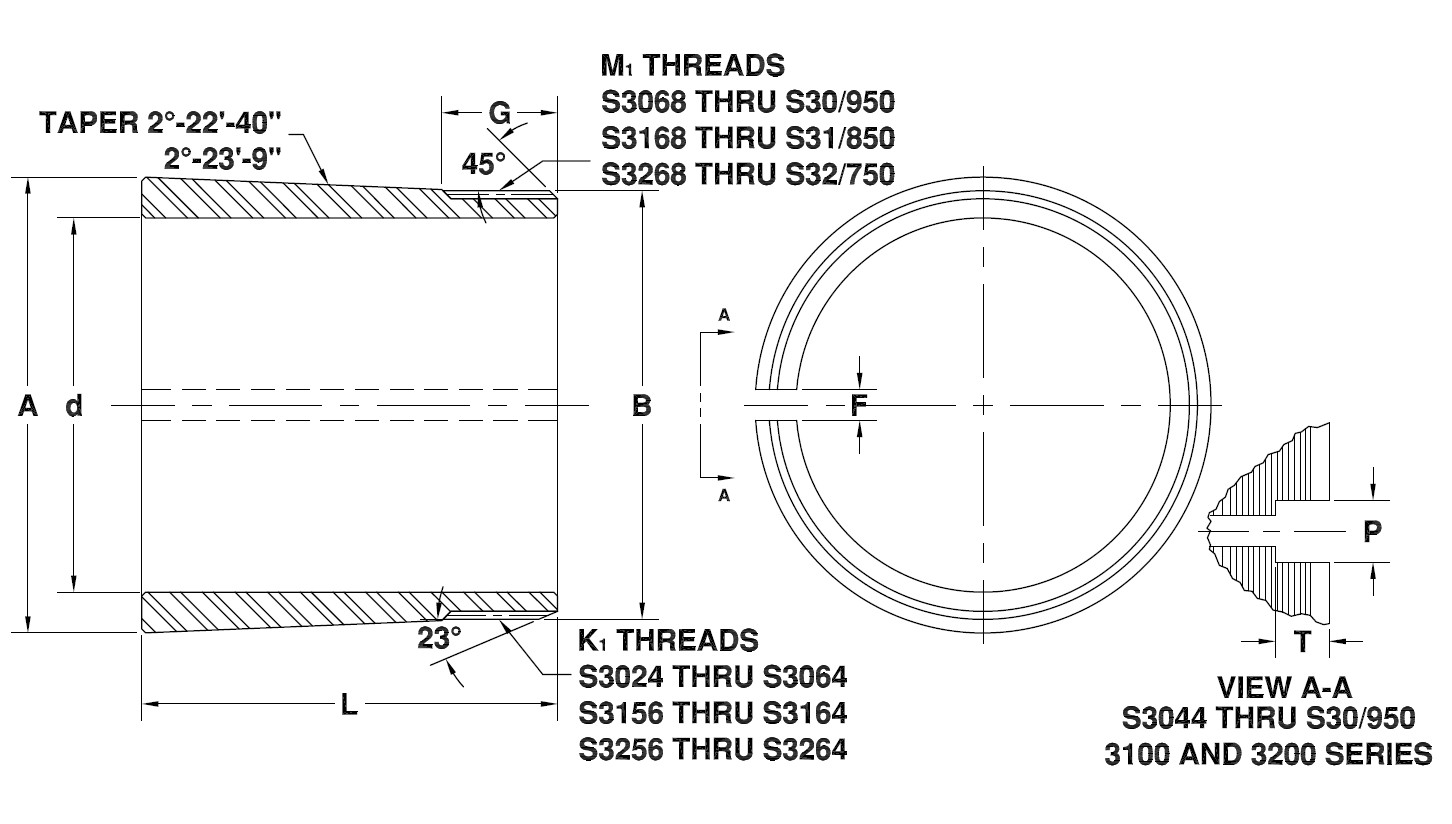

This is a series of adapter assemblies used for wider series bearings. They are the most commonly used method for locating tapered bore roller bearings onto a cylindrical shaft. This series of adapters is used with 231 series spherical roller bearings.
Features and benefits
- Heavy duty positive locking method for industrial applications.
- Easy to install at any position on a straight shaft without the need for additional locating device.
- Common technique and design allow simple installation and removal.
- Standard Locknut sets the industry locknut standard
- SNW3122 through SNW3144 series use a thin series (N-000) locknut and (W-000) lockwasher configuration.SNP3148 and larger use thin section (N-000) locknuts and (P-000) lockplates to accommodate larger shaft assemblies.
- Can be mounted directly to a straight shaft or on against the step on a stepped shaft for accurate axial positioning.
- Adapter sleeves and N and AN locknuts can be reused, provided they are not damaged. A new lockwasher or locking plate should be used each time the corresponding locknut is installed.
- Conforms with ABMA, SAE and ABEC standards for bearing and power transmission applications. Unless otherwise specified, manufactured from AISI grade 1000 or 1200 series steel.
- Bearing bore surface finish will not exceed 100 microinches for sizes 00-10, 120 microinches for sizes 11-22, and 150 microinches for sizes above 22.
